PV-100: PV Monitoring Package

$1,095.00

Introducing the new PV monitoring package designed to work with an SMA cluster controller. The package includes a silicon-cell pyranometer with a mounting bracket, Class A PRT back-of-panel temperature sensor with Kapton tape, fan-aspirated solar radiation shield with 24 V-12 V DC converter, and Class A PRT air temperature sensor with TS-100 port adapter.

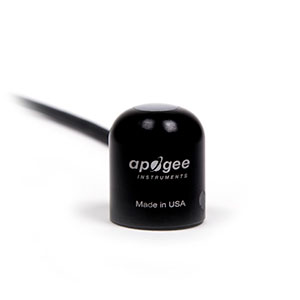

SP-214 - PV-100 Package

Solar Radiation Sensor (SP-214)

  • High accuracy, silicon-cell pyranometer
  • 4-20 mA output signal
  • Measures Global Horizontal Irradiance (GHI) or Plane of Array (PoA) Irradiance

More information on the SP-214 available here.

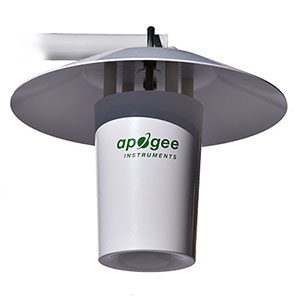

TS-100

Fan-Aspirated Solar Radiation Shield (TS-100)

  • Prevents solar radiation induced errors
  • Long life, IP55 rated fan
  • Meets IEC 61724-1 requirements

More information on the TS-100 available here.

  • Includes 24 V-12 V DC Converter

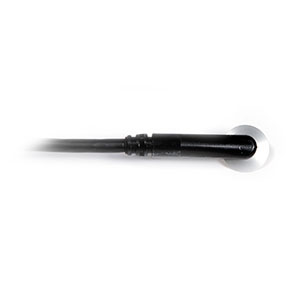

CS240 - PV-100 Package

Back-of-Panel Temperature Sensor (CS240)

  • PT1000 Class A PRT
  • Self-adhesive aluminum disk promotes heat transfer from panel surface

More information on the CS240 available here.

  • Includes Kapton tape to secure sensor
ST-150 - PV-100 Package

Air Temperature Sensor (ST-150)

  • 1/8 inch diameter, Class A PRT
  • IP67 rated
  • Meets IEC 61724-1 requirements

More information on the ST-150 available here.

  • Includes port adapter for TS-100
Full Description

Introducing the new PV monitoring package designed to work with an SMA cluster controller. The package includes a silicon-cell pyranometer with a mounting bracket, Class A PRT back-of-panel temperature sensor with Kapton tape, fan-aspirated solar radiation shield with 24 V-12 V DC converter, and Class A PRT air temperature sensor with TS-100 port adapter.

SP-214 - PV-100 Package

Solar Radiation Sensor (SP-214)

  • High accuracy, silicon-cell pyranometer
  • 4-20 mA output signal
  • Measures Global Horizontal Irradiance (GHI) or Plane of Array (PoA) Irradiance

More information on the SP-214 available here.

TS-100

Fan-Aspirated Solar Radiation Shield (TS-100)

  • Prevents solar radiation induced errors
  • Long life, IP55 rated fan
  • Meets IEC 61724-1 requirements

More information on the TS-100 available here.

  • Includes 24 V-12 V DC Converter
CS240 - PV-100 Package

Back-of-Panel Temperature Sensor (CS240)

  • PT1000 Class A PRT
  • Self-adhesive aluminum disk promotes heat transfer from panel surface

More information on the CS240 available here.

  • Includes Kapton tape to secure sensor
ST-150 - PV-100 Package

Air Temperature Sensor (ST-150)

  • 1/8 inch diameter, Class A PRT
  • IP67 rated
  • Meets IEC 61724-1 requirements

More information on the ST-150 available here.

  • Includes port adapter for TS-100

We are currently looking for case studies for this product. If you would like to share your application of this product, please click here.

Current Stock:
SP-214 Silicon-cell Pyranometer Specifications Power Supply 5 to 36 V DC with a maximum current drain 22 mA (2 mA quiescent current drain) Sensitivity 0.013 mA per W mˉ² Calibration Factor 78 W mˉ² mA (reciprocal of sensitivity) with an offset of 4.0 mA Calibration Uncertainty ± 5 % Calibrated Output Range 4 to 20 mA Measurement Repeatablitiy Less than 1 % Non-stability (Long-term Drift) Less than 2 % per year Non-linearity Less than 1 % (up to 1250 W mˉ², maximum radiation measurement is 1250 w mˉ²) Response Time Less than 1 ms Field of View 180 ˚ Spectral Range 360 to 1120 nm (wavelengths where response is 10 % of maximum) Directional (Cosine) Response ±5 % at 75 ˚ zenith angle Temperature Response 0.04 ± 0.04 % per C Operating Environment -40 to 70 C, 0 to 100 % relative humdiity, can be submerged in water up to depths of 30 m Dimensions 24 mm diameter, 28 mm height Cable 5 m of shielded, twisted-pair wire with santoprene rubber jacket (high water resistance, high UV stability, flexibility in cold conditions) Mass 140 g ( with 5 m of lead wire) Warranty 4 years against defects in materials and workmanship CS240 Back-of-Pannel Temperature Sensor Specifications Element Type Precision 1000 Ω class A platinum sensing element Tolerance ± (0.15 + 0.002t) Temperature Coefficient TCR = 3850 ppm/K Long-Term Stability Maximum R₀ drift 0.04 % (after 1000 h at 400 C) Measuring Current 0.1 to 0.3 mA Operating Tempertature Range -40 to 105 C Disk Material Anodized aluminum Cable Jacket Material Black semi-gloss PVC, UL VWˉ¹ sunlight-resistant for outdoor use Disk Diameter 25.4 mm Overall Probe Length 63.5 mm Overmolded Joint Dimensions 57.2 x 11.2 x 14.7 mm ST-150 Class A PRT Specifications Measurement Range -50 to 70 C Measurement Uncertainty 0.3 C (-40 to 60 C), Class A Measurement Repeatability Less than 0.01 C Long-term Drift Less than 0.05 C per year Equilibration Time 15 seconds Self-heating Less than 0.01 C (typical, assuming pulsed excitation of 2.1 V DC), 0.09 at 5 C (max. assuming continuous input excitation of 2.1 V DC) Operating Environmental -50 to 70 C, 0 to 100 % relative humidity Input Voltage Requirement Datalogger dependent Output Voltage Requirement Datalogger dependent Current Draw Datalogger dependent Dimensions 56 mm, 3 mm diameter Mass 95 g Warranty 4 years against defects in materials and workmanship TS-100 Fan-Aspirated Radiation Shield Specifications Difference among Individual Replicate Shields Less than 0.1 C Aspiration Rate 6 m sˉ¹ at full-speed, 3 m sˉ¹ at half-speed Fan Input Voltage Requirement 10.8 to 13.2 V DC Fan Current Drain 80 mA at full-speed, 25 mA at half-speed Fan Dust and Water Protection IP55 Dimensions 220 mm height, 270 mm diameter Mass 840 g Cables 5 m of shielded, twisted-pair wire for fan and air temperature sensors with santoprene rubber jacket (high water resistance, high UV stability, flexibility in cold conditions), pigtail lead wires Warranty 4 years against defects in materials and workmanship
