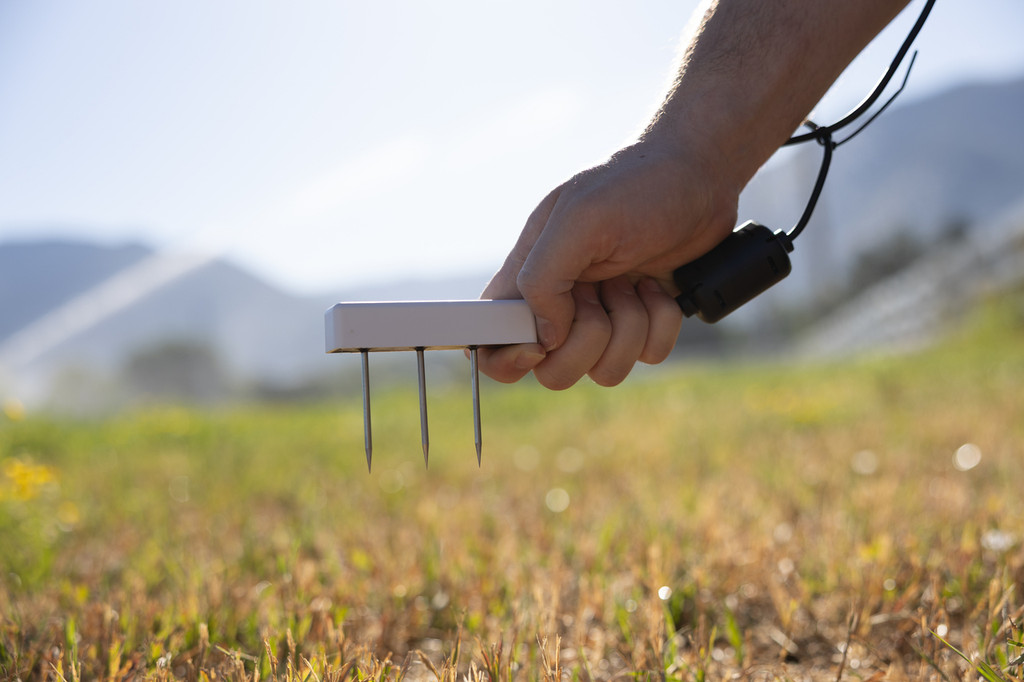

This is a TEROS 12 sensor that measures soil moisture, temperature, and electroconductivity with Modbus digital output. This sensor is fit for a range of soil types and EC levels so you can be confident in the accuracy of your data. This sensor features a 1.01 liter volume of influence.
The TEROS 12 soil moisture sensor combines METER’s well-tested 70 MHz circuitry, a rugged epoxy fill, and salt-resistant, securely attached stainless steel needles that easily slip into soil. Low power consumption and high resolution provide increased precision over long periods of time.
FOR MORE PRODUCT INFORMATION, CHECK OUT THESE LINKS
Current Stock:
Range with Mineral Soil Calibration
0.00–0.70 m³/m³
Range with Soilless Media Calibration
0.00-1.0 m³/m³
Apparent Dielectric Permittivity
1 (air) to 80 (water)
Resolution
0.0010 m³/m³ for volumetric water content, 0.10 °C for temperature, and 1 μS/cm for electrical conductivity
Accuracy with Generic Calibration
±0.03 m³/m³ (±3.00% VWC) typical in mineral soils that have solution EC <8,000 μS/cm
Accuracy with Medium Specific Calibration
±0.01–0.02 m³/m³ in any porous medium
Apparent Dielectric Permittivity Accuracy
±15% of measurement
Temperature Range
–40 to +60 °C
Temperature Accuracy
±1.0 °C from –40 to 0 °C ±0.5 °C from 0 to +60 °C
Communication/Output
Modbus
Dimensions
3.7 in x 0.95 in x 2.95 in, with 2.17 in long needles.
Operating Environment
-40 to 60 C
Measurement Duration
25-150 ms
Current Drain
3-16 mA while measuring
