Good data requires periodic recalibration of sensors to insure optimal accuracy. The standard recommendation is that sensors be recalibrated every two years, with government agencies mandating their own more frequent schedule. Our studies have shown that our sensors drift less than 2% per year and a recalibration schedule depends on customer needs. To help you determine when recalibration is necessary we have developed the Clear Sky Calculator (www.clearskycalculator.com and Clear Sky Calculator mobile app). Inputs on location and current weather conditions are used to determine what solar radiation (or quantum flux) would be under clear sky conditions. Radiation estimates produced by the calculator are most accurate near solar noon, during summer months. In a recent study, calculator accuracy was reported to be ± 3 percent when used under optimal conditions∗; sensitivity to required input parameters was also reviewed in the study.

∗ASCE Standardized Reference Evapotranspiration Equation. American Society of Civil Engineers. Reston, Virginia, USA. 2005.

Using the Clear Sky Calculator

Customers often contact Apogee Instruments to inquire about how often pyranometers and quantum sensors should be recalibrated. While it is safe practice to follow the general recommendation to recalibrate radiation sensors every two years, it may not be necessary to recalibrate on a fixed schedule if a sensor consistently matches a reference. The challenge for many pyranometer and quantum sensor users is they don’t have a handy reference.

In response to customer inquiries regarding recalibration requirements, in 2009 Apogee Instruments developed the Clear Sky Calculator, an online tool that can be used to estimate the intensity of solar radiation (either total global shortwave radiation, measured by pyranometers, or global photosynthetic photon flux density, measured by quantum sensors) incident on a horizontal surface at any time of the day, at any location in the world. The equations used to estimate clear sky solar radiation with the Clear Sky Calculator come from the clear sky solar radiation model used to calculate net radiation in the ASCE Standardized Reference Evapotranspiration Equation (Appendix D describes clear sky procedure). The only input requirements to the calculator are site elevation, latitude, longitude, reference longitude, and air temperature and relative humidity measurements or estimates. These data are typically easy to obtain, making the Clear Sky Calculator a simple solar radiation reference that can be used to estimate pyranometer and quantum sensor accuracy and determine the need for recalibration.

When used near solar noon over multiple clear, unpolluted days during spring and summer months, accuracy of the Clear Sky Calculator is estimated to be ± 4 % in all climates and locations around the world. As an example, modeled incoming shortwave radiation (SWi) from the Clear Sky Calculator closely tracked measured SWi (data from a heated and ventilated Kipp & Zonen CM21 pyranometer) for a clear day (April 21, 2012) in Logan, Utah (Figure 1). The ratio of measured SWi to modeled SWi was between 1.00 and 1.05 (0 % and 5 %) from 9 A.M. to 6 P.M. (solar zenith angles less than 65°) (Figure 2). The average ratio from two hours before solar noon to two hours after solar noon was 1.02 ± 0.01 (2 ± 1 %). A more detailed discussion of Clear Sky Calculator accuracy is given on the webpage (http://clearskycalculator.com/model_accuracy.htm), where the necessary accuracy of the required inputs is discussed.

Apogee strongly encourages our customers to use the Clear Sky Calculator as an effective way to monitor pyranometer and quantum sensor performance and determine the need for sensor recalibration. If a sensor is consistently different from the Clear Sky Calculator by more than a few percent, please contact us about recalibration.

Modeled SWi from the Clear Sky Calculator.

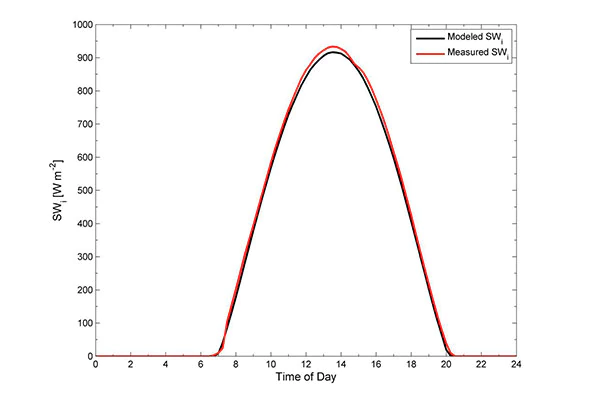

Figure 1: Comparison of measured incoming shortwave radiation (SWi) (red line) and modeled SWi on April 21, 2012 in Logan, Utah. Measured SWi is from a heated and ventilated blackbody pyranometer (Kipp & Zonen model CM21). Modeled SWi is from the Clear Sky Calculator.

Ratio of measured shortwave radiation (SWi) to modeled

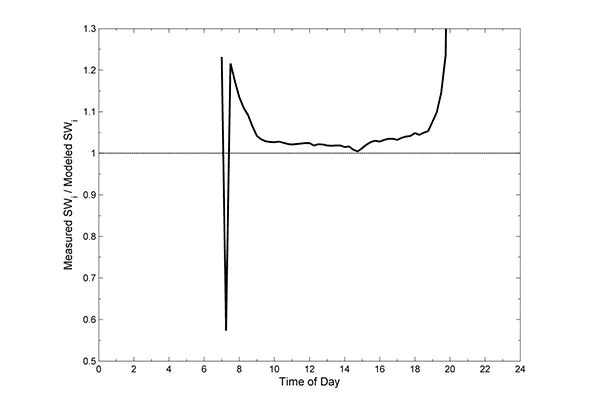

Figure 2: Ratio of measured shortwave radiation (SWi) to modeled SWi over the course of a clear day (April 21, 2012) in Logan, Utah. Mean ratio = 1.02 & 0.01 (2 ± 1 %) for measurements averaged from two hours before solar noon to two hours after solar noon (solar noon occurred at approximately 13.5). The dip in the morning near 7 is due to mountains on the east side of the valley where Logan is located.
