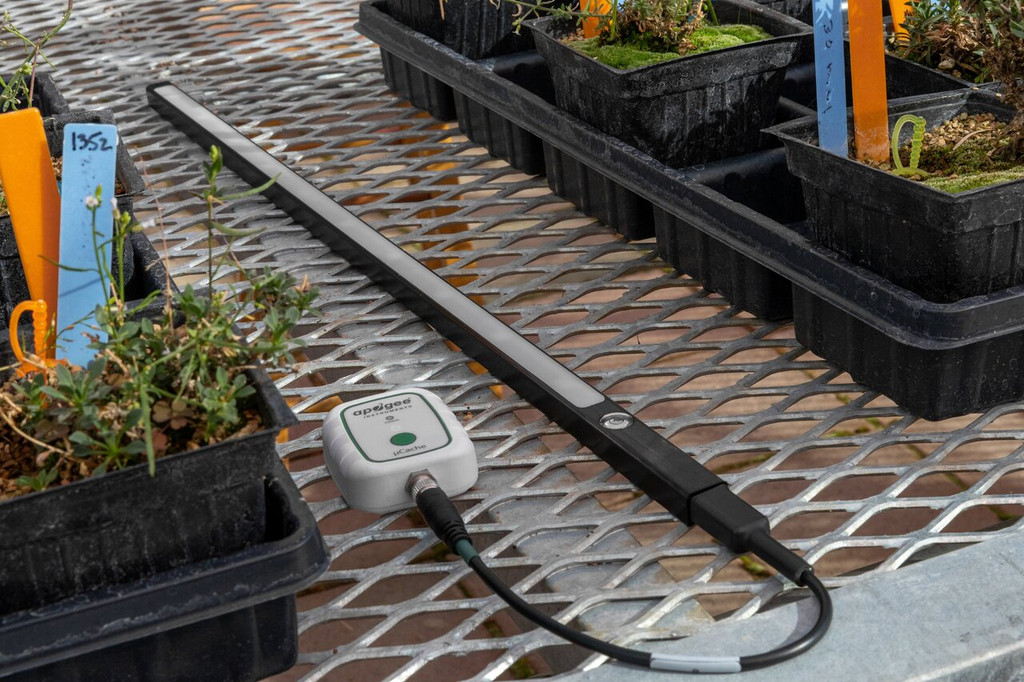

PQ-350: PAR Bar with MicroCache Package

$849.00

This promotional package includes a PAR Bar sensor with a 2 meter cable, a microCache Bluetooth micro-logger, and an extra 2545 microCache battery. When paired, these two devices are a powerful tool for monitoring photosynthetically active radiation with research-grade accuracy for optimal specimen growth. The PAR Bar provides a spacial average for PAR, which is helpful in determining the amount of light reaching an area.

The AT-100 microCache (µCache) micro-logger is a rugged, standalone, battery-powered device that can collect over 400,000 data points and connects your sensor to your iOS or Android device via Bluetooth using our free ApogeeConnect app. The app allows you to make real-time measurements, set custom datalogging intervals, monitor and graph daily lights integrals, assure photoperiods, download datasets, and more.

FOR MORE PRODUCT INFORMATION, CHECK OUT THESE LINKS

FEATURES

Transmits real-time data to iOS and Android devices using the Apogee Connect app.

Rugged, IP67 rated housing for harsh environments.

Datalogging Mode stores over 400,000 entries, (9 months of 1-minute data) with programmable sampling and logging intervals.

High Resolution Readings: Processor features a 24 bit analog-to-digital converter.

Backed by a 4 year warranty and outstanding customer support.

MORE INFORMATION ON THE APOGEE µCache >> click here

Full Description

Quantity

Where to Buy

FOR MORE PRODUCT INFORMATION, CHECK OUT THESE LINKS

FEATURES

Transmits real-time data to iOS and Android devices using the Apogee Connect app.

Rugged, IP67 rated housing for harsh environments.

Datalogging Mode stores over 400,000 entries, (9 months of 1-minute data) with programmable sampling and logging intervals.

High Resolution Readings: Processor features a 24 bit analog-to-digital converter.

Backed by a 4 year warranty and outstanding customer support.

MORE INFORMATION ON THE APOGEE µCache >> click here

Current Stock:

Power Supply Self-powered sensor, battery-powered logger Battery Type 2/3 AA 3.6 Volt Lithium Battery Battery Life ~1 year w/ 10-second sampling interval and an average of 5 minutes daily connected time; ~2 years w/ 60-second sampling interval and an average of 5 minutes daily connected time Sensitivity 0.1 mV per µmol mˉ² sˉ¹ ADC Resolution 24 bits Calibration Factor 10 µmol mˉ² sˉ¹ per mV (reciprocal of sensitivity) Calibration Uncertainty ± 5 % Calibrated Output Range 0 to 250 mV Non-stability (Long-term Drift) Less than 2 % per year Non-linearity Less than 1 % (up to 2,500 µmol mˉ² sˉ¹) Response Time Less than 1 ms µCache Time Accuracy ± 30 seconds per month at 0° C - 70° C Spectral Range 370 nm to 650 nm (where response is > 50% of maximum) Temperature Response -0.04 % per C Operating Environment -10 to 60 C; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m Sensor Dimensions 616.4 mm length, 12.7 mm height, 16.5 mm width µCache Dimensions 66 mm length, 50 mm width, 18 mm height Communication Protocol Bluetooth® Low Energy (Bluetooth 4.0+) Bluetooth Range ~45 m (line-of-sight) Datalogging Capability Averaging Interval: 1-60 minutes; Sampling Interval: ≥ 1 second Log Capacity Over 400,000 Entries (~9 months at a 1-minute logging interval) Mass 362 g Connector Type M8 IP Rating IP67 Warranty 4 years against defects in materials and workmanship
