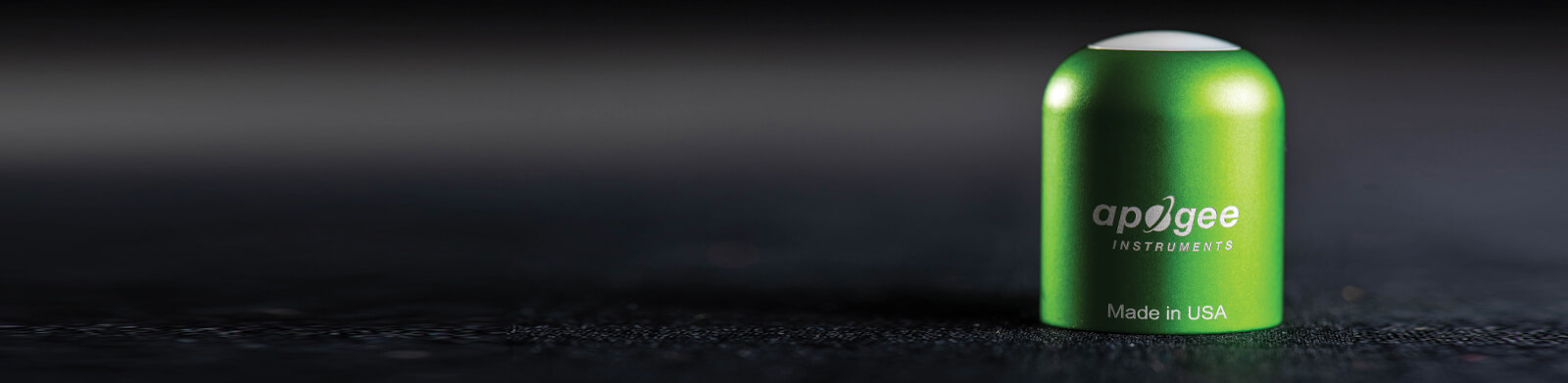

Photometric Sensor Support

Specifications
Case Studies
Product Manuals
Spec Sheets
Technical Drawings
FAQs
Software & Datalogger Programs
Recalibration & Repair



Photometric Sensor Specifications
Specification Icon
  SE-100-SS SE-202-SS SE-205-SS SE-212-SS SE-215-SS SE-421-SS
Power Supply - 5 to 24 V DC 5.5 to 24 V DC 5 to 24 V DC 5.5 to 24 V DC 5.5 to 24 V DC
Current Draw - maximum of 10 µA maximum of 10 µA maximum of 10 µA maximum of 10 µA 1.4 mA (quiescent); 1.8 mA (active)
Output (Sensitivity) 0.001 mV per lux 0.5 mV per lux 1 mV per lux 0.0167 mV per lux 0.033 mV per lux -
Calibration Factor 1000 lux per mV 2 lux per mV 1 lux per mV 60 lux per mV 30 lux per mV Custom for each sensor and stored in the firmware
Calibration Uncertainty ± 5 % ± 5 % ± 5 % ± 5 % ± 5 % ± 5 %
Output Range 0 to 200 mV 0 to 2500 mV 0 to 5000 mV 0 to 2500 mV 0 to 5000 mV SDI-12
Measurement Range 0 to 150000 lux 0 to 5000 lux 0 to 5000 lux 0 to 150000 lux 0 to 150000 lux 0 to 150000 lux
Measurement Repeatability Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 %
Long-term Drift Less than 2 % per year Less than 2 % per year Less than 2 % per year Less than 2 % per year Less than 2 % per year Less than 2 % per year
Non-linearity Less than 1 % Less than 1 % Less than 1 % Less than 1 % Less than 1 % Less than 1 %
Response Time Less than 1 ms Less than 1 ms Less than 1 ms Less than 1 ms Less than 1 ms Less than 0.6 s
Spectral Range CIE 1931 luminous efficiency function CIE 1931 luminous efficiency function CIE 1931 luminous efficiency function CIE 1931 luminous efficiency function CIE 1931 luminous efficiency function CIE 1931 luminous efficiency function
Field of View 180° 180° 180° 180° 180° 180°
Directional (Cosine) Response ± 2 % at 45°; ± 5 % at 75° ± 2 % at 45°; ± 5 % at 75° ± 2 % at 45°; ± 5 % at 75° ± 2 % at 45°; ± 5 % at 75° ± 2 % at 45°; ± 5 % at 75° ± 2 % at 45°; ± 5 % at 75°
Temperature Response Less than 0.1 % per C Less than 0.1 % per C Less than 0.1 % per C Less than 0.1 % per C Less than 0.1 % per C Less than 0.1 % per C
Operating Environment -40 to 70 C; 0 to 100 % relative humidity -40 to 70 C; 0 to 100 % relative humidity -40 to 70 C; 0 to 100 % relative humidity -40 to 70 C; 0 to 100 % relative humidity -40 to 70 C; 0 to 100 % relative humidity -40 to 70 C; 0 to 100 % relative humidity
Dimensions 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height
Mass (with 5 m of cable) 140 g 140 g 140 g 140 g 140 g 140 g
Cable 5 m of shielded, twisted-pair wire with TPR jacket and M8 stainless steel connector 5 m of shielded, twisted-pair wire with TPR jacket and M8 stainless steel connector 5 m of shielded, twisted-pair wire with TPR jacket and M8 stainless steel connector 5 m of shielded, twisted-pair wire with TPR jacket and M8 stainless steel connector 5 m of shielded, twisted-pair wire with TPR jacket and M8 stainless steel connector 5 m of shielded, twisted-pair wire with TPR jacket and M8 stainless steel connector



Photometric Sensor Case Studies
Apogee Instruments Photometric Sensor Case Studies
Typical Applications

Applications include:

• Highly accurate illuminance measurements (lux or footcandles)

Light Box Experiments
Light Box Experiments
Apogee sensors protecting Van Gogh's masterpieces.
Read More >
PDF >

If you would like to share your application of this product, please click here



Photometric Sensor Product Manuals
Product Manuals Icon
SE-100-SS
SE-202-SS
SE-205-SS
SE-212-SS
SE-215-SS
SE-421-SS



Photometric Sensor Specification Sheets
Specification Sheets Icon
SE-100-SS
SE-202-SS
SE-205-SS
SE-212-SS
SE-215-SS
SE-421-SS



Photometric Sensor Technical Drawings
Technical Drawings Icon
SE-100-SS
SE-202-SS
SE-205-SS
SE-212-SS
SE-215-SS
SE-421-SS



  FAQs

 What are the new cable connectors?



Didn't find your answer?

  1. Home
  2. / Photometric Sensor
  3. / Photometric Sensor Support

Shop by brand

  • Apogee
  • Campbell Scientifice

Shop by price

  • $0.00 - $122.00
  • $122.00 - $200.00
  • $200.00 - $279.00
  • $279.00 - $357.00
  • $357.00 - $435.00
SE-100-SS 0-150000 lux Photometric Sensor
Quick View

SE-100-SS 0-150000 lux Photometric Sensor

$335.00
SE-202-SS: Amplified 0-2500 mV, 0-5000 lux Photometric Sensor
Quick View

SE-202-SS: Amplified 0-2500 mV, 0-5000 lux Photometric Sensor

$385.00
SE-205-SS: Amplified 0-5000 mV, 0-5000 lux Photometric Sensor
Quick View

SE-205-SS: Amplified 0-5000 mV, 0-5000 lux Photometric Sensor

$385.00
SE-212-SS: Amplified 0-2500 mV,  0-150000 lux Photometric Sensor
Quick View

SE-212-SS: Amplified 0-2500 mV, 0-150000 lux Photometric Sensor

$385.00
SE-215-SS: Amplified 0-5000 mV, 0-150000 lux Photometric Sensor
Quick View

SE-215-SS: Amplified 0-5000 mV, 0-150000 lux Photometric Sensor

$385.00
SE-421-SS 0-150000 Lux SDI-12 Photometric Sensor
Quick View

SE-421-SS 0-150000 Lux SDI-12 Photometric Sensor

$435.00
AL-100: Solar Sensor Leveling Plate
Quick View

AL-100: Solar Sensor Leveling Plate

$44.00
AL-120 Solar Mounting Bracket with Leveling Plate
Quick View

AL-120 Solar Mounting Bracket with Leveling Plate

$64.00
