SE-421-SS 0-150000 Lux SDI-12 Photometric Sensor

$510.00

The SE-421-SS Photometric sensor is a digital lux sensor with a range of 0-150000 lux and SDI-12 communication protocol. The sensor features a rugged, aluminum housing that is fully-submersible and is built to withstand harsh conditions, and high-quality cable terminating in pre-tinned pigtail leads for easy connection to dataloggers and controllers. The sensor cable includes an IP68 marine-grade stainless-steel cable connector to simplify sensor removal and replacement from permanent installations for maintenance and calibration. Typical applications of photometric sensors include measuring light levels for human vision in offices, sports arenas, hospitals, museums and more.



FOR MORE PRODUCT INFORMATION, CHECK OUT THESE LINKS

• Product Manual

• Specification Sheet

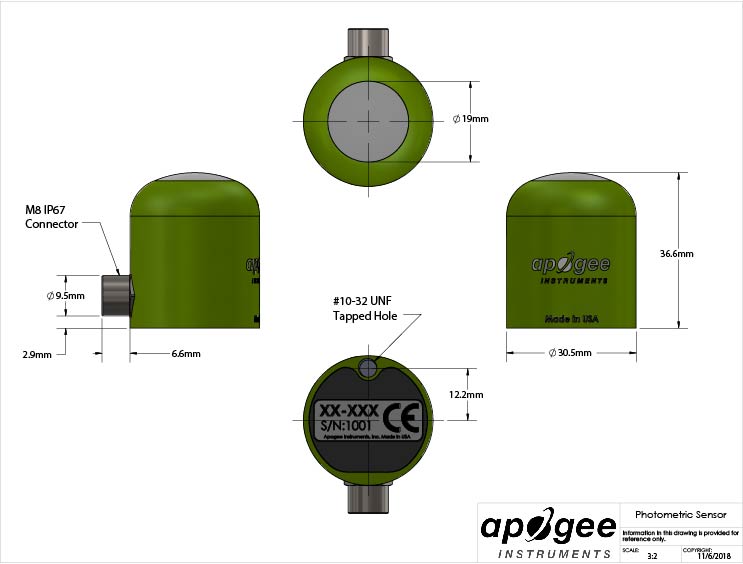

• Technical Drawing



MORE INFORMATION ON APOGEE PHOTOMETRIC SENSORS >> click here

Full Description
Where to Buy

The SE-421-SS Photometric sensor is a digital lux sensor with a range of 0-150000 lux and SDI-12 communication protocol. The sensor features a rugged, aluminum housing that is fully-submersible and is built to withstand harsh conditions, and high-quality cable terminating in pre-tinned pigtail leads for easy connection to dataloggers and controllers. The sensor cable includes an IP68 marine-grade stainless-steel cable connector to simplify sensor removal and replacement from permanent installations for maintenance and calibration. Typical applications of photometric sensors include measuring light levels for human vision in offices, sports arenas, hospitals, museums and more.



FOR MORE PRODUCT INFORMATION, CHECK OUT THESE LINKS

• Product Manual

• Specification Sheet

• Technical Drawing



MORE INFORMATION ON APOGEE PHOTOMETRIC SENSORS >> click here

Current Stock:
Input Voltage Requirement 5.5 to 24 V DC Current Draw 1.4 mA (quiescent), 1.8 mA (active) Calibration Uncertainty ± 5 % Measurement Range 0 to 150000 lux Measurement Repeatability Less than 0.5 % Long-term Drift (Non-stability) Less than 2 % per year Non-linearity Less than 1 % Response Time Less than 0.6 s Field of View 180˚ Spectral Range CIE 1931 luminous efficiency function Directional (Cosine) Response ± 2 % at 45˚; ± 5 % at 75˚ Temperature Response Less than 0.1 % per C Operating Environment -40 to 70 C; 0 to 100 % relative humidity Dimensions 30.5 mm diameter, 37 mm height Mass (with 5 m of cable) 140 g Cable 5 m of shielded, twisted-pair wire; TPR jacket (high water resistance, high UV stability, flexibility in cold conditions); pigtail lead wires; stainless steel (316), M8 connector Warranty 4 years against defects in materials and workmanship Manufactured Assembled in the USA
