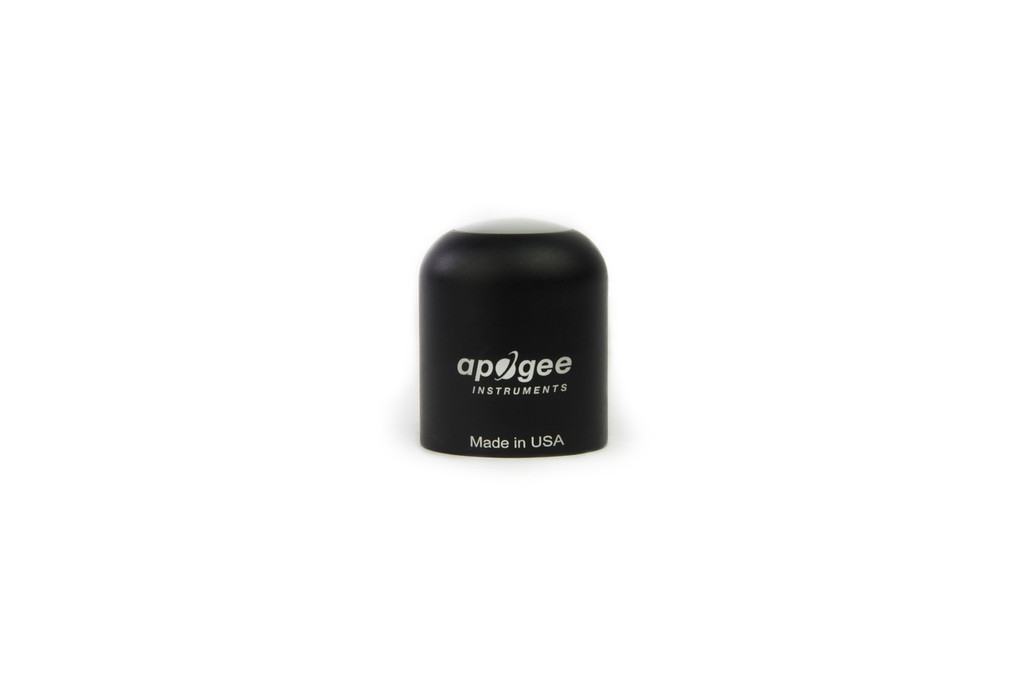

SQ-100X-SS: Original Quantum Sensor

Due to a Covid-related supply chain shortage, please call for availability.

The SQ-100X-SS is a self-powered, analog original quantum sensor with a 0 to 400 mV output. The sensor features a rugged, self-cleaning sensor housing design, and high-quality cable terminating in pre-tinned pigtail leads for easy connection to dataloggers and controllers. Typical applications include PPFD (Photosynthetic Photon Flux Density) measurement over plant canopies in outdoor environments, greenhouses, and growth chambers, and reflected or under-canopy (transmitted) PPFD measurements in the same environments. Quantum sensors are also used to measure PAR (Photosynthetically Active Radiation)/PPFD in aquatic environments, including salt water aquariums where corals are grown. Sensor includes IP68 marine-grade stainless-steel cable connector 30 cm from head to simplify sensor removal and replacement for maintenance and recalibration.

The analog version of this sensor (SQ-100X-SS) comes with the inline cable connector placed 30 cm from the sensor head for either standard use as a long-cable pigtail sensor, or for use with our microCache Bluetooth Micro Logger by unscrewing the connector, discarding the long section of cable and then screwing the sensor to the mating connector on the microCache.



FOR MORE PRODUCT INFORMATION, CHECK OUT THESE LINKS

• Product Manual

• Specification Sheet

• Technical Drawing



MORE INFORMATION ON APOGEE ORIGINAL X QUANTUM SENSORS >> click here

Full Description
Where to Buy Unavailable

The SQ-100X-SS is a self-powered, analog original quantum sensor with a 0 to 400 mV output. The sensor features a rugged, self-cleaning sensor housing design, and high-quality cable terminating in pre-tinned pigtail leads for easy connection to dataloggers and controllers. Typical applications include PPFD (Photosynthetic Photon Flux Density) measurement over plant canopies in outdoor environments, greenhouses, and growth chambers, and reflected or under-canopy (transmitted) PPFD measurements in the same environments. Quantum sensors are also used to measure PAR (Photosynthetically Active Radiation)/PPFD in aquatic environments, including salt water aquariums where corals are grown. Sensor includes IP68 marine-grade stainless-steel cable connector 30 cm from head to simplify sensor removal and replacement for maintenance and recalibration.

The analog version of this sensor (SQ-100X-SS) comes with the inline cable connector placed 30 cm from the sensor head for either standard use as a long-cable pigtail sensor, or for use with our microCache Bluetooth Micro Logger by unscrewing the connector, discarding the long section of cable and then screwing the sensor to the mating connector on the microCache.



FOR MORE PRODUCT INFORMATION, CHECK OUT THESE LINKS

• Product Manual

• Specification Sheet

• Technical Drawing



MORE INFORMATION ON APOGEE ORIGINAL X QUANTUM SENSORS >> click here

Current Stock:
Power Supply Self-powered Sensitivity 0.1 mV per µmol mˉ² sˉ¹ Calibration Factor 10 µmol mˉ² sˉ¹ per mV (reciprocal of sensitivity) Calibration Uncertainty ± 5 % Calibrated Output Range 0 to 400 mV Measurement Repeatability Less than 0.5 % Non-stability (Long-term Drift) Less than 2 % per year Non-linearity Less than 1 % (up to 4000 µmol mˉ² sˉ¹ ) Response Time Less than 1 ms Field of View 180˚ Spectral Range 370 to 650 nm (wavelengths where response is greater than 50 % of maximum) Directional (Cosine) Response ± 5 % at 75˚ zenith angle Temperature Response -0.04 % per C Operating Environment -10 to 60 C; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m Dimensions 24 mm diameter, 33 mm height Mass 90 g (with 5 m of lead wire) Cable 5 m of shielded, twisted-pair wire with TPR jacket (high water resistance, high UV stability, flexibility in cold conditions) Warranty 4 years against defects in materials and workmanship Manufactured Made in the USA
