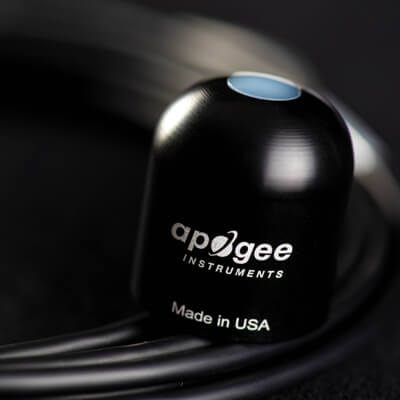

Apogee Instruments' quantum sensors provide accurate and cost effective measurement of photosynthetically active radiation (PAR) from all light sources used to grow plants and corals.



Accurate, Stable Measurements
Sensors are cosine-corrected to maintain their accuracy when radiation comes from low zenith angles. The sensors measure PPFD with a cosine response accurate within ± 5 % at 75° zenith angle. Long-term non-stability determined from multiple replicate quantum sensors in accelerated aging test and field conditions is less than 2 % per year.



Spectral Response
The Original Quantum Sensor has a spectral range of 410 to 655 nm. The spectral response can be seen in the graph below



Calibration
To ensure accuracy, each sensor is carefully calibrated in controlled conditions and traceable to NIST reference standards. The Original sensors are pre-calibrated for either sunlight or electric light sources.



Rugged, Self-cleaning Housing
Patented domed shaped sensor head (diffuser and body) facilitate runoff of dew and rain to keep the sensor clean and minimize errors caused by dust blocking the radiation path. Sensors are housed in a rugged anodized aluminum body and electronics are fully potted.

Typical Applications
PPFD measurements over plant canopies in outdoor environments, greenhouses, and growth chambers, and reflected or under canopy (transmitted) PPFD measurements in the same environments. Quantum sensors are also used to measure PPFD in aquatic environments, including salt water aquariums where corals are grown.



Line Quantum Sensor Options
Line quantum sensors (multiple detectors mounted along the length of a rugged anodized aluminum bar) provide spatially averaged PPFD measurements along the length of the bar. All sensors in the line are electrically connected, resulting in a single voltage output that is directly proportional to average PPFD.

Ideal for Measurements in Air
and Underwater

Apogee quantum sensor are calibrated to make absolute PPFD measurements in air. The waterproof sensors can be used to make absolute PPFD measurements underwater by applying an immersion effect correction factor, the SQ-420, SQ-520, MQ-210, and MQ-510 already apply the correction factor. For details on making underwater measurements, please refer to Underwater PAR Measurements

Output Options
Multiple analog output options are available. Additionally, a digital "smart" sensor that uses USB communication and custom software to interface directly to a computer is available. Sensors are also available attached to a hand-held meter with digital readout.



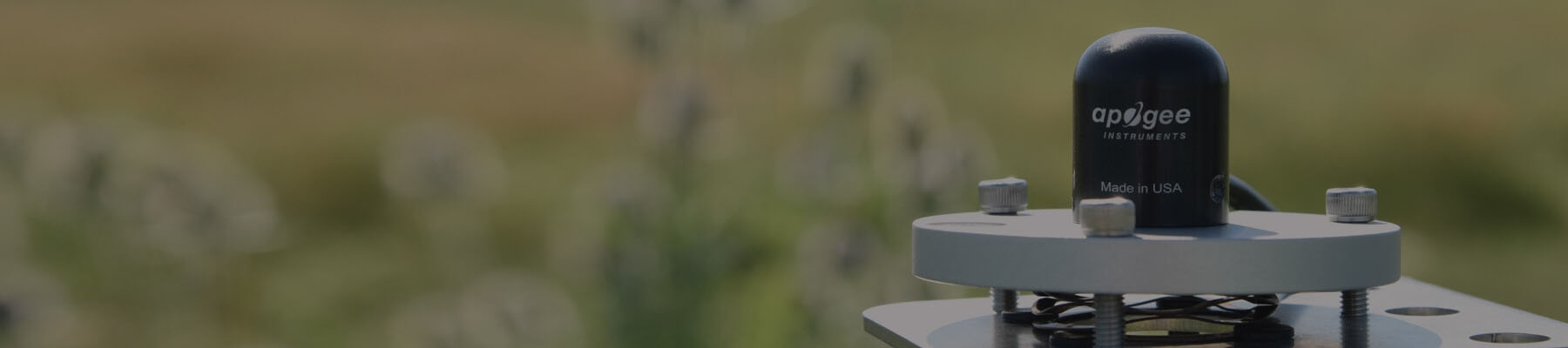

Mounting
The AL-120 Solar Mounting Bracket with Leveling Plate facilitates mounting the sensor to a mast or pipe. The AL-100 Solar Sensor Leveling Plate is designed to level the sensor while sitting on a flat surface or mounting to a surface.

Warranty and Support
All Apogee products are backed by an industry-leading four year warranty and outstanding customer support.





Case Studies

PAR Measurements Characterize Tree Coverages

PAR Measurements Characterize Tree Coverages
Using line quantum meter to study the percent of PAR (under canopy/open sky) and its relation to survival and initial growth of native forest species.
Read More >



Line Quantum in Greenhouse

Controlling Flowering of Orchids in Greenhouse
Line quantum sensor used to measure PPFD and daily light integral, while experimenting with temperature to control flowering.
Read More >


View all Case Studies >



Need help choosing a sensor?

  Technical Information
Technical Information
Find knowledge base articles, manuals, FAQs, technical support, and more.

+ What type of Quantum Sensor do I need?
Apogee Instruments produces two types of quantum sensors.

The Original Quantum Sensor (SQ-100, SQ-200, SQ-300, and SQ-400 Series) have a spectral range of 410 to 655 nm. The Original Quantum Sensor works great for most single light, non-LED, and sun applications.

The Full-spectrum Quantum Senor (SQ-500 Series) has a spectral range of 389 to 692 ± 5 nm. The Full-spectrum quantum sensor is the best option for LED and multiple light applications.

Once sensor type is determined, you will need to decide what output is needed to determine the sensor model number. This is usually dependent on the type of controller/logger you have.

+ Which Original Quantum Sensor model do I need?
All Original Quantum Sensors (SQ-100, SQ-200, SQ-300, and SQ-400 series) use the same detector. The model number you need depends on which output is compatible with your datalogger and if you are measuring a sun or electric light source. Model numbers are listed below with their output and calibration:
SQ-110 0 to 800 mV 0 to 4000 µmol m-2 s-1 Sunlight Calibration
SQ-120 0 to 800 mV 0 to 4000 µmol m-2 s-1 Electric light calibration
SQ-212 0 to 2.5 V 0 to 2500 µmol m-2 s-1 Sunlight calibration
SQ-222 0 to 2.5 V 0 to 2500 µmol m-2 s-1 Electric light calibration
SQ-214 4 to 20 mA 0 to 2500 µmol m-2 s-1 Sunlight calibration
SQ-224 4 to 20 mA 0 to 2500 µmol m-2 s-1 Electric light calibration
SQ-215 0 to 5 V 0 to 2500 µmol m-2 s-1 Sunlight calibration
SQ-225 0 to 5 V 0 to 2500 µmol m-2 s-1 Electric light calibration
SQ-311 0 to 4 V 0 to 4000 µmol m-2 s-1 Sunlight calibration
SQ-321 0 to 4 V 0 to 4000 µmol m-2 s-1 Electric light calibration
SQ-313 0 to 4 V 0 to 4000 µmol m-2 s-1 Sunlight calibration
SQ-323 0 to 4 V 0 to 4000 µmol m-2 s-1 Electric light calibration
SQ-316 0 to 4 V 0 to 4000 µmol m-1 s-1 Sunlight calibration
SQ-326 0 to 4 V 0 to 4000 µmol m-2 s-1 Electric light calibration
SQ-420 USB/software 0 to 4000 µmol m-2 s-1 Electric and sunlight calibration

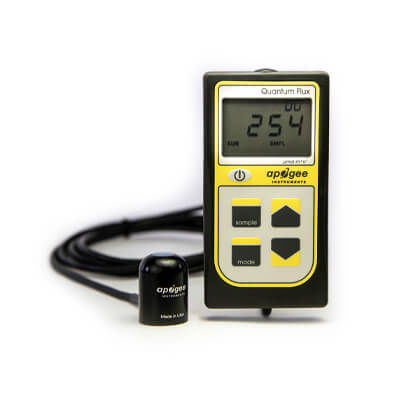

MQ-100 Sensor integrated into top of handheld meter with digital readout Electric and sunlight calibration
MQ-200 Sensor attached to a handheld meter with digital readout Electric and sunlight calibration

*The above ranges are standard and built to stock. If you need a larger range than what is listed please contact technical support for a quote on your specific requirement.

+ What is the difference between the SQ-110 (Sunlight Calibration) and the SQ-120 (Electric light Calibration)?
The SQ-110 is calibrated for sunlight. The SQ-120 is calibrated for electric light. The difference between the calibrations is 12 %.
+ How is the line quantum (SQ-300 series) different from the single sensor (SQ-100, SQ-200, and SQ-400 series)?
The line quantum is a sensor with multiple detectors installed into a bar rather than a single sensor installed in our domed-shaped head. The line quantum sensor was developed to measure PPFD in applications with high spatial variability, such as below a plant canopy where leaf shading is constantly changing. The mV output from the line quantum sensor is an average of all the sensors in the bar, there is no way to monitor each individual sensor, only the averaged output.
+ Which Quantum Sensor should I purchase for my Greenhouse?
You should purchase the quantum sensor that matches your greenhouse light source the closest. We recommend an electric light calibrated sensor to measure supplemental electric lighting, a sunlight calibrated sensor to measure daylight PAR, and the SQ-500 series sensor for LED lights.
+ What Quantum Sensor should I purchase for my Aquarium?
You should purchase the quantum sensor that matches your aquarium light source the closest. We recommend the MQ-210 or SQ-420 for supplemental electric lighting and sunlight. We recommend the MQ-510 or SQ-520 for LED lights. Apogee does offer meters and sensors, models (MQ-210, MQ-510, and SQ-520), that are ready out of the box for underwater measurements. These underwater meters and sensors are preprogrammed with the immersion effect correction factor, so no post-measurement corrections need to be made. All other Apogee quantum sensors and meters need to have their respective immersion effect correction factor multiplied to their reading. For more information on underwater PAR measurements click here.
+ Are Apogee Quantum Meters waterproof?
The handheld meter is not waterproof, only the sensor and cable are waterproof. If Apogee quantum sensors are used underwater, please refer to Underwater PAR Measurements or the Underwater Measurements and Immersion Effect section of your owner's manual.
+ Do I need to order a sensor to go with my meter?
No. All Apogee meters (MO, MP, MQ, and MU series) either have sensors built into the meter or attached via two meters of cable. If you order a sensor only (SI, SO, SP, SQ, and SU series) you will need to have your own datalogger (or, depending on the sensor, a voltmeter) to collect information form the sensor.
+ What is the difference between the MQ-200 and MQ-210?
The only difference between the MQ-200 and MQ-210 is the MQ-210 has the immersion effect correction factor already applied to the meter readings so there is no need for post-measurement corrections for underwater measurements. .


spec sheets

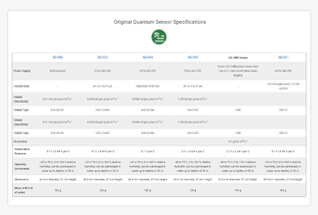

Specification Sheets
