Radiation that drives photosynthesis is called photosynthetically active radiation (PAR) and is typically defined as total radiation across a range of 400 to 700 nm. PAR is often expressed as photosynthetic photon flux density (PPFD): photon flux in units of micromoles per square meter per second (µmol m-2 s-1, equal to microEinsteins per square meter per second) summed from 400 to 700 nm (total number of photons from 400 to 700 nm). While Einsteins and micromoles are equal (one Einstein = one mole of photons), the Einstein is not an SI unit, so expressing PPFD as µmol m-2 s-1 is preferred.
Sensors that measure PPFD are often called quantum sensors due to the quantized nature of radiation. A quantum referes to the minimum quantity of radiation, one photon, involved in physical interactions (e.g., absorption by photosynthetic pigments). In other words, one photon is a single quantum of radiation.

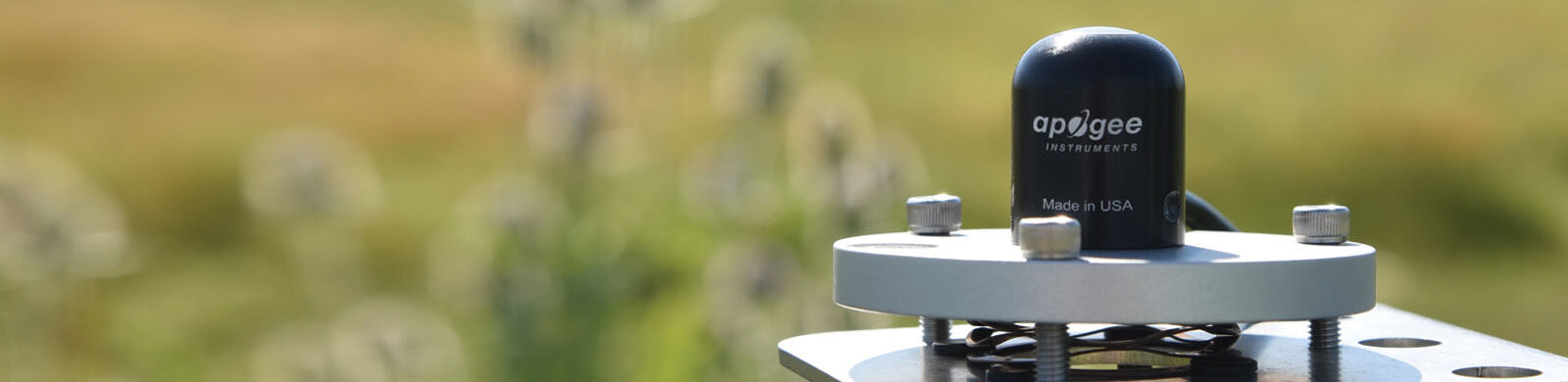

Apogee Instruments SQ series quantum sensors consist of a cast acrylic diffuser (filter), photodiode, and signal processing circuitry mounted in an anodized aluminum housing, and a cable to connect the sensor to a measurement device. Sensors are potted solid with no internal air space. SQ series sensors output an analog voltage that is directly proportional to PPFD under sunlight (e.g., model SQ-110) or electric lights (e.g., model SQ-120).
| SQ-110/120 | SQ-212/222 | SQ-214/224 | SQ-215/225 | SQ-300 Series | SQ-420 | SQ-421 | SQ-422 | |
|---|---|---|---|---|---|---|---|---|
| Power Supply | Self-powered | 5 to 24 V DC | 7 to 24 V DC | 5.5 to 24 V DC | Self-powered | 5 V USB power source | 5.5 to 24 V DC | 5.5 to 24 V DC |
| Current Draw | - | 10 µA | 22 mA maximum; 2 mA quiescent | 10 µA | - | 61 mA when logging | 1.4 mA (quiescent); 1.8 mA (active) | RS-232 quiescent 36.87 mA, active 37.06 mA; RS-485 quiescent 37.37 mA, active 42.30 mA |
| Output (Sensitivity) | 0.2 mV per µmol m-2 s-1 | 0.625 mV per µmol m-2 s-1 | 0.004 mA per µmol m-2 s-1 | 1.25 mV per µmol m-2 s-1 | 0.2 mV per µmol m-2 s-1 | - | - | - |
| Output Type | 0 to 800 mV | 0 to 2.5 V | 4 to 20 mA | 0 to 5 V | 0 to 800 mV | USB | SDI-12 | Modbus |
| Resolution | - | - | - | - | - | 0.1 µmol m-2 s-2 | - | - |
| Calibration Factor (reciprocal of sensitivity) | 5 µmol m-2 s-1 per mV | 1.6 µmol m-2 s-1 per mV | 250 µmol m-2 s-1 per mV | 0.8 µmol m-2 s-1 per mV | 5 µmol m-2 s-1 per mV | Custom for each sensor and stored in the firmware | Custom for each sensor and stored in the firmware | Custom for each sensor and stored in the firmware |
| Calibration Uncertainty | ± 5 % | ± 5 % | ± 5 % | ± 5 % | ± 5 % | ± 5 % | ± 5 % | ± 5 % |
| Measurement Repeatability | Less than 0.5 % | Less than 0.5 % | Less than 0.5 % | Less than 0.5 % | Less than 0.5 % | Less than 0.5 % | Less than 1 % | Less than 1 % |
| Long-term Drift | Less than 2 % per year | Less than 2 % per year | Less than 2 % per year | Less than 2 % per year | Less than 2 % per year | Less than 2 % per year | Less than 2 % per year | Less than 2 % per year |
| Non-linearity | Less than 1 % (up to 4000 µmol m-2 s-1) | Less than 1 % (up to 4000 µmol m-2 s-1) | Less than 1 % (up to 4000 µmol m-2 s-1) | Less than 1 % (up to 4000 µmol m-2 s-1) | Less than 1 % (up to 4000 µmol m-2 s-1) | Less than 1 % (up to 4000 µmol m-2 s-1) | Less than 1 % (up to 4000 µmol m-2 s-1) | Less than 1 % (up to 4000 µmol m-2 s-1) |
| Response Time | Less than 1 ms | Less than 1 ms | Less than 1 ms | Less than 1 ms | Less than 1 ms | Software updates every second | Less than 0.6 s | - |
| Field of View | 180° | 180° | 180° | 180° | 180° | 180° | 180° | 180° |
| Spectral Range | 410 to 655 nm (wavelengths where response is greater than 50 % of maximum) | 410 to 655 nm (wavelengths where response is greater than 50 % of maximum) | 410 to 655 nm (wavelengths where response is greater than 50 % of maximum) | 410 to 655 nm (wavelengths where response is greater than 50 % of maximum) | 410 to 655 nm (wavelengths where response is greater than 50 % of maximum) | 410 to 655 nm (wavelengths where response is greater than 50 % of maximum) | 410 to 655 nm (wavelengths where response is greater than 50 % of maximum) | 410 to 655 nm (wavelengths where response is greater than 50 % of maximum) |
| Spectral Selectivity | Less than 10 % from 469 to 655 nm | Less than 10 % from 469 to 655 nm | Less than 10 % from 469 to 655 nm | Less than 10 % from 469 to 655 nm | Less than 10 % from 469 to 655 nm | Less than 10 % from 469 to 655 nm | Less than 10 % from 469 to 655 nm | Less than 10 % from 469 to 655 nm |
| Directional (Cosine) Response | ± 5 % at 75° zenith angle | ± 5 % at 75° zenith angle | ± 5 % at 75° zenith angle | ± 5 % at 75° zenith angle | ± 5 % at 75° zenith angle | ± 5 % at 75° zenith angle | ± 5 % at 75° zenith angle | ± 5 % at 75° zenith angle |
| Temperature Response | 0.06 ± 0.06 % per C | 0.06 ± 0.06 % per C | 0.06 ± 0.06 % per C | 0.06 ± 0.06 % per C | 0.06 ± 0.06 % per C | 0.06 ± 0.06 % per C | 0.06 ± 0.06 % per C | 0.06 ± 0.06 % per C |
| Operating Environment | -40 to 70 C; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m | -40 to 70 C; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m | -40 to 70 C; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m | -40 to 70 C; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m | -40 to 70 C; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m | -40 to 70 C; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m | -40 to 70 C; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m | -40 to 70 C; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m |
| Dimensions | 24 mm diameter, 33 mm height | 30.5 mm diameter, 37 mm height | 30.5 mm diameter, 37 mm height | 30.5 mm diameter, 37 mm height | SQ-313/316/323/326: 500 mm x 15 mm x 15 mm, SQ-311/321: 700 mm x 15 mm x 15 mm | 24 mm diameter, 33 mm height | 30.5 mm diameter, 37 mm height | 30.5 mm diameter, 37 mm height |
| Mass (with 5 m of cable) | 90 g | 140 g | 140 g | 140 g | SQ-313/316/323/326: 275 g, SQ-311/321: 375g | 90 g | 140 g | 140 g |
How to Choose a Quantum Sensor
If you can't access the video via Youtube, click here.
Why do I need a PAR-Quantum Meter?
If you can't access the video via Youtube, click here.
In-depth Look at PAR-Quantum Meters
If you can't access the video via Youtube, click here.
Far-red: The Forgotten Photons
If you can't access the video via Youtube, click here.
Turning Photons Into Food
If you can't access the video via Youtube, click here.
Toward an Optimal Spectral Quality for Plant Growth and Development
If you can't access the video via Youtube, click here.
PAR Sensor Spectral Error Correction Tool
If you can't access the video via Youtube, click here.
PAR, PPF, PPFD, and PFD Explained
Photobiology Simplified with Dr Bruce Bugbee
If you can't access the video via Youtube, click here.
Applications include:
• PPFD measurements over plant canopies in outdoor environments, greenhouses, and growth chambers
• Reflected or under-canopy (transmitted) PPFD measurements in outdoor environments, greenhouses, and growth chambers
• PAR/PPFD measurements in aquatic environments, including salt water aquariums where corals are grown
