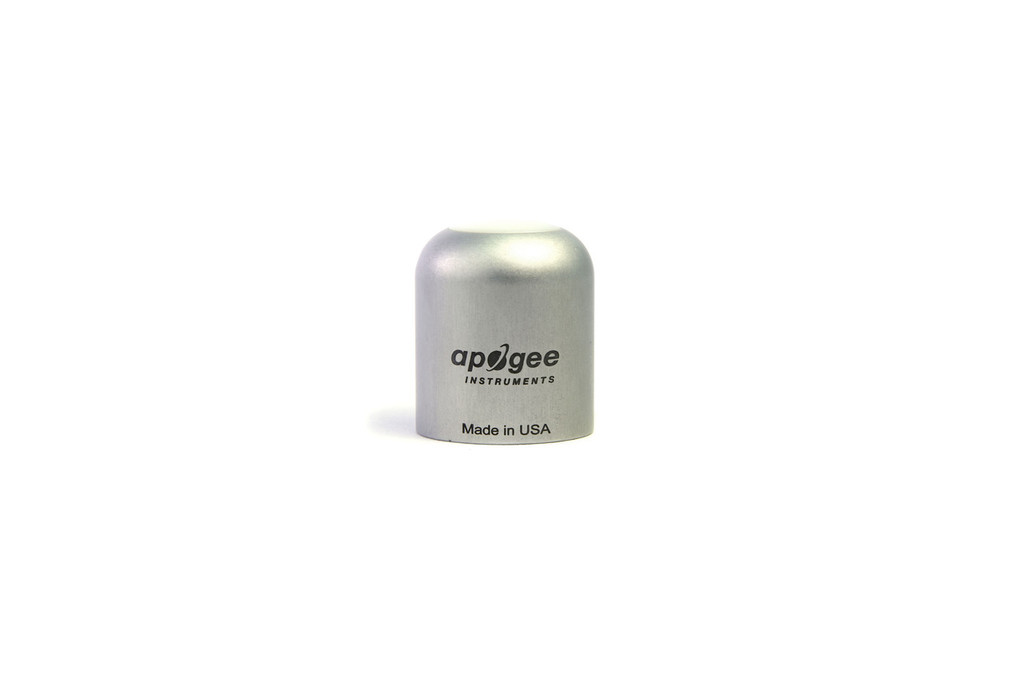

SU-300-SS: UV Index Sensor

$513.97

The SU-300-SS Ultraviolet Index sensor is a hardwired, unamplified analog sensor with a voltage output. The sensor offers a low-cost option for detecting UV Index and UVB radiation from 270 to 315 nm. UV Index is a relative metric that scales linearly with the intensity of UV radiation that causes sunburn in humans. Measured UV Index can be converted to energy flux density units of watts per square meter (W m-2, equal to Joules per second per square meter) or photon flux density units of micromoles per square meter per second (µmol m-2 s-1). Typical applications include monitoring the filtering ability and stability of various materials, measuring UV Index/UVB radiation in outdoor environments, and monitoring UV radiation in laboratories and horticultural operations environments.



FOR MORE PRODUCT INFORMATION, CHECK OUT THESE LINKS

• Product Manual

• Specification Sheet



For more UV sensor information and support, Click Here >



Full Description
Expected ship date: End of May 2026
Where to Buy

The SU-300-SS Ultraviolet Index sensor is a hardwired, unamplified analog sensor with a voltage output. The sensor offers a low-cost option for detecting UV Index and UVB radiation from 270 to 315 nm. UV Index is a relative metric that scales linearly with the intensity of UV radiation that causes sunburn in humans. Measured UV Index can be converted to energy flux density units of watts per square meter (W m-2, equal to Joules per second per square meter) or photon flux density units of micromoles per square meter per second (µmol m-2 s-1). Typical applications include monitoring the filtering ability and stability of various materials, measuring UV Index/UVB radiation in outdoor environments, and monitoring UV radiation in laboratories and horticultural operations environments.



FOR MORE PRODUCT INFORMATION, CHECK OUT THESE LINKS

• Product Manual

• Specification Sheet



For more UV sensor information and support, Click Here >



Current Stock:
Power Supply Self-Powered Output (sensitivity) 0.1 mV per UV Index unit Calibration Factor (reciprocal of sensitivity) 10 UV Index units per mV Calibration Uncertainty ± 10 % Output Range 0 to 5 mV Measurement Range 0 to 50 UV Index Measurement Repeatability Less than 0.5 % Long-term Drift Less than 5 % per year Non-linearity Less than 1 % Response Time Less than 1 ms Field of View 180° Spectral Range 270 to 315 nm (wavelengths where response is greater than 50 % of maximum) Directional (Cosine) Response ± 10 % up to 75° Temperature Response Less than 0.1 % per C Operating Environment -40 to 80 C; 0 to 100 % relative humidity Dimension 30.5 mm diameter, 37 mm height Mass (5 m of cable) 140 g Cable 5 m of shielded, twisted-pair wire; TPR jacket (high water resistance, high UV stability, flexibility in cold conditions); pigtail lead wires Warranty 4 years against defects in materials and workmanship Manufactured Assembled in the USA
Release Date: Expected ship date: End of May 2026
