Ultraviolet Support

Apogee Instruments support information for ultraviolet sensors.

Specifications
Case Studies
Product Manuals
Spec Sheets
Technical Drawings
Helpful Articles & Links
FAQs
Software & Datalogger Programs
Recalibration & Repair



Ultraviolet Specifications
Specifications Icon
  SU-200-SS SU-202-SS SU-205-SS SU-220 SU-221-SS
Power Supply Self-powered 5 to 24 V DC 5.5 to 24 V DC - 5.5 to 24 V DC
Output (Sensitivity) 0.1 mV per W m-2;
0.03 mV per µmol m-2 s-1
25 mV per W m-2;
8.33 mV per µmol m-2 s-1
50 mV per W m-2;
16.67 mV per µmol m-2 s-1
- -
Resolution - - - 0.1 µmol m-2 s-1 -
Calibration Factor (reciprocal of sensitivity) 10 W m-2 per mV;
30 µmol m-2 s-1 per mV
0.04 W m-2 per mV;
0.12 µmol m-2 s-1 per mV
0.02 W m-2 per mV;
0.06 µmol m-2 s-1 per mV
Custom for each sensor and stored in the firmware Custom for each sensor and stored in the firmware
Calibration Uncertainty ± 10 % ± 10 % ± 10 % ± 10 % ± 10 %
Output Range 0 to 10 mV 0 to 2.5 V 0 to 5 V USB SDI-12
Measurement Range 0 to 100 W m-2 0 to 100 W m-2 0 to 100 W m-2 0 to 100 W m-2 0 to 100 W m-2
Measurement Repeatability Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 % Less than 0.5 %
Long-term Drift (Non-stability) Less than 2 % per year Less than 2 % per year Less than 2 % per year Less than 2 % per year Less than 2 % per year
Non-linearity Less than 1 % Less than 1 % Less than 1 % Less than 1 % Less than 1 %
Response Time Less than 1 ms Less than 1 ms Less than 1 ms Less than 1 ms Less than 0.6 s
Field of View 180° 180° 180° 180° 180°
Spectral Range 300 to 400 nm 300 to 400 nm 300 to 400 nm 300 to 400 nm 300 to 400 nm
Directional (Cosine) Response ± 2 % at 45°; ± 5 % at 75° zenith angle ± 2 % at 45°; ± 5 % at 75° zenith angle ± 2 % at 45°; ± 5 % at 75° zenith angle ± 2 % at 45°; ± 5 % at 75° zenith angle ± 2 % at 45°; ± 5 % at 75° zenith angle
Temperature Response Less than 0.1 % per C Less than 0.1 % per C Less than 0.1 % per C Less than 0.1 % per C Less than 0.1 % per C
Operating Environment -35 to 85 C, 0 to 100 % relative humidity -35 to 85 C, 0 to 100 % relative humidity -35 to 85 C, 0 to 100 % relative humidity -35 to 85 C, 0 to 100 % relative humidity -35 to 85 C, 0 to 100 % relative humidity
Dimensions 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height 30.5 mm diameter, 37 mm height
Mass (with 5 m of cable) 140 g 140 g 140 g 140 g 140 g
Warranty 4 years against defects in materials and workmanship 4 years against defects in materials and workmanship 4 years against defects in materials and workmanship 4 years against defects in materials and workmanship 4 years against defects in materials and workmanship



Ultraviolet Case Studies
Case Studies Icon
About Ultraviolet Sensors

Ultraviolet (UV) radiation constitutes a portion of the electromagnetic spectrum from 100 to 400 nm, and is further subdivided into three wavelength ranges: UV-A (315 to 400 nm), UV-B (280 to 315 nm) and UV-C (100 to 280 nm). Much of the UV-B and all of the UV-C wavelengths from the sun are absorbed by the Earth’s atmosphere. There are also many artificial UV light sources available that output a select wavelength range or offer a broadband UV radiation source.

UV-A radiation is important in material sciences and has numerous photobiological effects. For example, exposure to UV radiation can cause plants to produce secondary compounds, including flavonoids and antioxidants. Apogee's new UV-A sensors offer a low-cost option for detecting UV radiation from 300 to 400 nm and are calibrated in energy flux units of Watts per square meter.

Typical Applications

Applications include:

• UV radiation measurement in outdoor environments and laboratory settings

• Measuring the filtering ability and stability of various materials

• Monitoring UV radiation in horticultural operations and environments

If you would like to share your application of this product, please click here



Ultraviolet Product Manuals
Product Manuals Icon
SU-200-SS
SU-202-SS
SU-205-SS
SU-220
SU-221-SS
MU-250
SU-100-SS
(discontinued)
SU-420-USB
(discontinued)
MU-100
(discontinued)
MU-200
(discontinued)



Ultraviolet Specification Sheets
Specification Sheets Icon
SU-200-SS
SU-202-SS
SU-205-SS
SU-220
SU-221-SS
MU-250
SU-100-SS
(discontinued)
SU-420-USB
(discontinued)
MU-100
(discontinued)
MU-200
(discontinued)

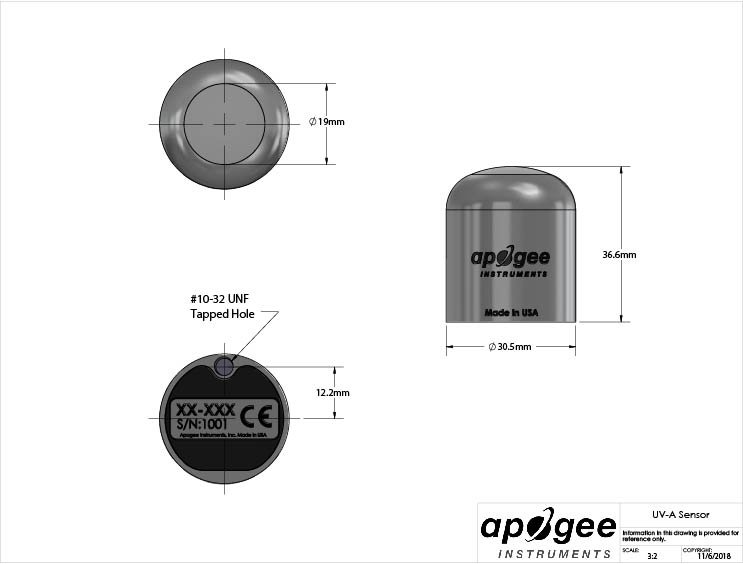

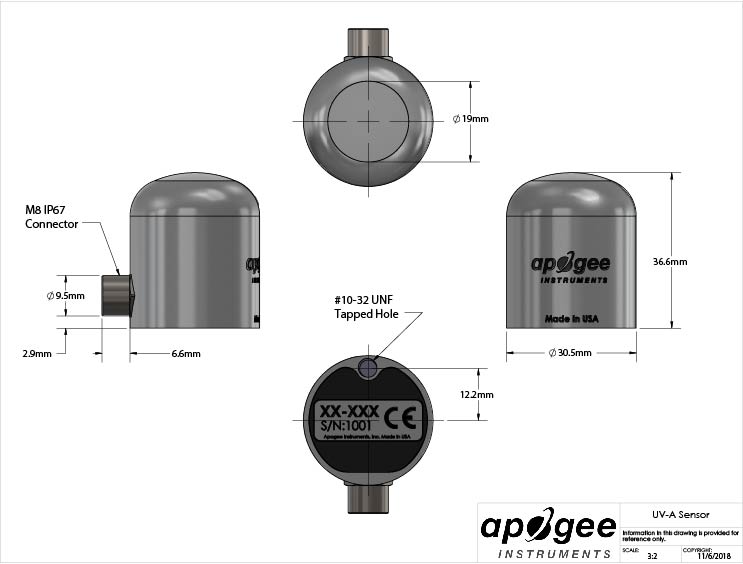

Ultraviolet Technical Drawings
Technical Drawings Icon
SU-200-SS
SU-202-SS
SU-205-SS
SU-220
SU-221-SS
MU-250
SU-100-SS
(discontinued)
SU-420-USB
(discontinued)
MU-100
(discontinued)
MU-200
(discontinued)



  Helpful Articles and Links

   Apogee Meter Tips and Troubleshooting

   Conversion UV-A Units (SU-200 series)

   Conversion PPFD to Watts (SU-100 series)

UV Journal Articles

   Effects of Enhanced Ultraviolet-B Radiation and Antioxidative-type Plant Growth Regulators on Rice Leaf Photosynthetic Rate, Photochemistry, and Physiiology

   Global SunFarm Data Acquisition Network, Energy, CRADLE, and Time Series Analysis

   Understanding Litter Decompositiion in Semiarid Ecosystems: Linking Leaf Traits, UV Exposure and Rainfall Variability

   Field-grown Grapevine Berries Use Cartenoids and the Associated Xanthopyll Cycles to Acclimate to UV Exposure Differentially in High and Low Light Conditions

   ClimaTological Characteristics in the Extreme Hyper-arid Region of Pampas de La Joya, Peru. Astrobiological approach in four years of observation: 2004-2008

   The Effect of Increasing Grain Size in Biosand Water Filters in Combination with Ultraviolet Disinfection

   Atmospheric Corrosion of Silver in Outdoor Environments and Modified Accelerated Corrosion Chambers

   Photochemical Bleaching of Fluorescent Dissolved Organic Matter in the Subtropical North Pacific Ocean

   Time-Dependent Environmental Degradation of Polymeric Fabrics



 FAQs
For FAQs Click Here
