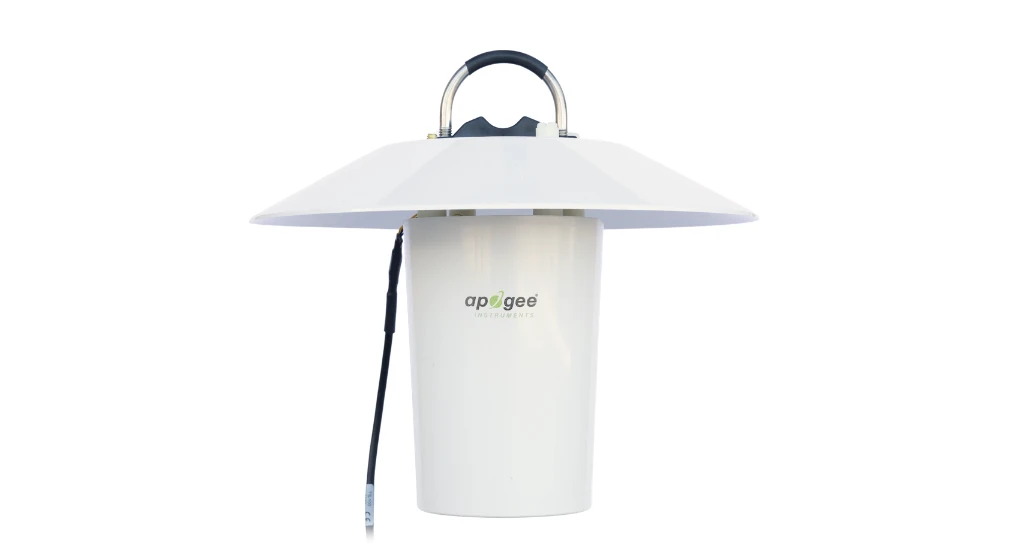

TS-100-SS 12 V Aspirated Radiation Shield (Shield Only)

$430.00

The TS-100 is the shield-only model of Apogee's 12 V fan-aspirated radiation shield. The unique aerodynamic shape and rugged, low-power fan make it the first research-grade fan-aspirated shield that is practical for use on battery or solar powered stations. The shield provides excellent sensor protection and accommodates various combinations of thermistors, PRTs, and humidity probes using one of the sensor port adapter plugs. Click here for a list of compatible sensors. If you use a different sensor, please contact us directly to discuss compatibility. Typical applications include air temperature and humidity measurement in weather networks, often for weather forecasting, and solar energy sites. Fan-aspirated shields are also important in the precise measurement of air temperature and humidity gradients above the land surface and in climate change monitoring.



FOR MORE PRODUCT INFORMATION, CHECK OUT THESE LINKS

• Product Manual

• Specification Sheet

• Technical Drawing

• Technical Drawing of Port Adapters



MORE INFORMATION ON APOGEE FAN ASPIRATED RADIATION SHIELDS >> click here

Full Description
Where to Buy

The TS-100 is the shield-only model of Apogee's 12 V fan-aspirated radiation shield. The unique aerodynamic shape and rugged, low-power fan make it the first research-grade fan-aspirated shield that is practical for use on battery or solar powered stations. The shield provides excellent sensor protection and accommodates various combinations of thermistors, PRTs, and humidity probes using one of the sensor port adapter plugs. Click here for a list of compatible sensors. If you use a different sensor, please contact us directly to discuss compatibility. Typical applications include air temperature and humidity measurement in weather networks, often for weather forecasting, and solar energy sites. Fan-aspirated shields are also important in the precise measurement of air temperature and humidity gradients above the land surface and in climate change monitoring.



FOR MORE PRODUCT INFORMATION, CHECK OUT THESE LINKS

• Product Manual

• Specification Sheet

• Technical Drawing

• Technical Drawing of Port Adapters



MORE INFORMATION ON APOGEE FAN ASPIRATED RADIATION SHIELDS >> click here

Current Stock:
Difference among Individual Replicate Shields Less than 0.1 C Aspiration Rate 6 m/s at full speed, 3 m/s at half speed Fan Input Voltage Requirement 10.8 to 13.2 V DC Fan Current Draw 80 mA at full-speed, 25 mA at half-speed Fan Dust and Water Protection IP55 Operating Temperature Range -40 to 70 C Dimensions 220 mm height, 270 mm diameter Mass 840 g Cables 5 m of shielded, twisted-pair wire for fan and air temperature sensors with santoprene rubber, jacket (high water resistance, high UV stability, flexibility in cold conditions) Temperature Sensor Not included (included in model TS-110) Warranty 4 years against defects in materials and workmanship Manufactured Made in the USA
