Radiation Shield Support

Specifications
Videos
Case Studies
Product Manuals
Spec Sheets
Technical Drawings
Helpful Articles & Links
FAQs
Software & Datalogger Programs
Recalibration & Repair



Radiation Shield Specifications
Apogee Instruments Radiation Shield Specifications
  TS-100
Shield Only (12 V)
TS-200
Shield Only (24 V)
Difference Among Individual Replicate Shields Less than 0.1 C Less than 0.1 C
Aspiration Rate 6 m s-1 at full-speed; 3 m s-1 at half-speed 6 m s-1 at full-speed; 3 m s-1 at half-speed
Fan Input Voltage Requirement 10.8 to 13.2 V DC 14.0 to 27.6 V DC
Fan Current Draw 80 mA at full-speed, 25 mA at half-speed 80 mA at full-speed, 25 mA at half-speed
Fan Dust and Water Protection IP55 IP55
Dimensions 220 mm height, 270 mm diameter 220 mm height, 270 mm diameter
Mass 840 g 840 g



Radiation Shield Videos
Apogee Instruments Radiation Shield Videos

Introducing Apogee's PV Monitoring Package

If you can't access the video via Youtube, click here.

Solar Radiation Shields Overview

If you can't access the video via Youtube, click here.

Air Temperature Measurement Sensors

If you can't access the video via Youtube, click here.

Aspirated Radiation Shield

If you can't access the video via Youtube, click here.

TS-100 Inlet Testing

If you can't access the video via Youtube, click here.

Lecture 1-Air Temperature & Humidity



Radiation Shield Case Studies
Apogee Instruments Radiation Shield Case Studies
About Radiation Shields

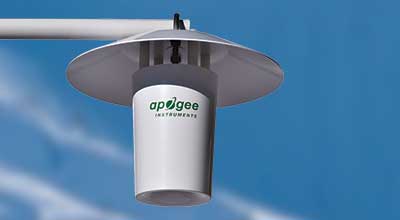

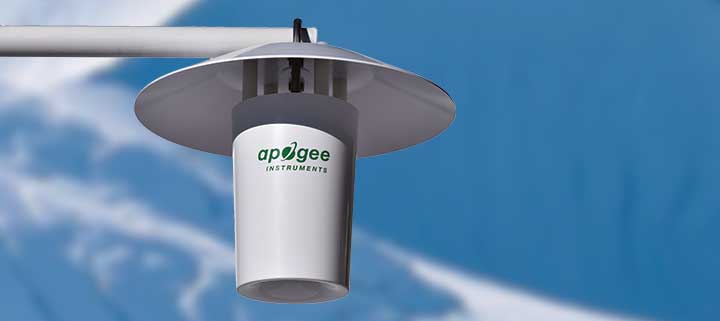

Fan-aspirated radiation shields are designed to shield temperature and humidity sensors from incident solar radiation while maintaining equilibrium with ambient air through active aspiration by a fan.

Typical Applications

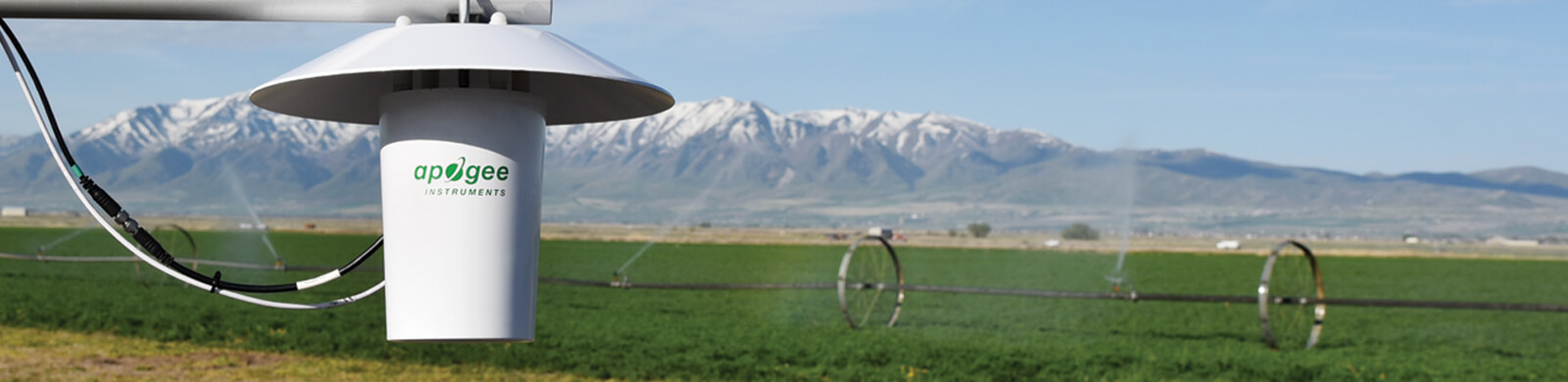

Applications include air temperature and humidity measurements in weather networks, often for weather forecasting. Fan-aspirated shields are also important in the precise measurement of air temperature and humidity gradients above the land surface and in climate change monitoring.

If you would like to share your application of this product, please click here.

Aspirated radiation shield helps measure temperature at a research weather station
Canaan Valley Record Low Temperature
An Apogee aspirated radiation shield measured the lowest official temperature recorded at a research weather station in Canaan Valley, West Virginia National Wildlife Refuge.
Read More >
PDF >
Orange-colored sunset over Los Angeles
Monitoring the Urban Heat Island Effect
Apogee’s aspirated radiation shields and thermistor temperature sensors are used to study the urban heat island effect and how pre-established solutions work to mitigate increasing temperature.
Read More >
PDF >
Central Appalachian Summit Mesonet
Central Appalachian Summit Mesonet
Apogee Instruments' TS-100 Fan Aspirated Radiation Shield is used in eight remote-access, solar powered weather stations that stream real-time weather data.
Read More >
PDF >
Tasmania: Ecological Research
Tasmania: Ecological Research
Eight TS-100 shields used to provide air temperature measurements to monitor long-term ecological health dynamics within wet eucalyptus forest at the Warra long-term ecological research site (LTER).
Read More >
PDF >
TS-100 at Utah State University
TS-100 at Utah State University
The USU weather station uses both an aspirated and static shield to monitor air temperature. A real-time graph on the site shows errors that occur when using static shields.
Read More >
PDF >
TS-100 at Peter Sinks
TS-100 at Peter Sinks
TS-100 used on a weather station at a record-setting cold location-Peter Sinks, Utah.
Read More >
PDF >



Radiation Shield Product Manuals
Apogee Instruments Radiation Shield Product Manuals

Radiation Shield Manual (TS-100, TS-110, TS-120, & TS-130) >

Radiation Shield Manual (TS-200, TS-210, TS-220, & TS-230) >



Radiation Shield Specification Sheets
Apogee Instruments Radiation Shield Specification Sheets

Radiation Shield Spec Sheet (TS-100, TS-110, TS-120, & TS-130) >

Radiation Shield Spec Sheet (TS-200, TS-210, TS-220, & TS-230) >



Radiation Shield Technical Drawings
Apogee Instruments Radiation Shield Technical Drawings

Radiation Shield Tech Drawing (TS-100 & TS-200 Series) >      Sensor Port Options Tech Drawing >



  Helpful Articles and Links

   Air Temperature - ASA Agroclimatology

   Sensor Port Options

   Accuracy Difference in Naturally vs. Fan-aspirated Shields

   Feature Article on the TS-100 in Meteorological Technology International

   Comparing Performance of three Fan-aspirated Solar Radiation

   Static solar shields do not meet the ± 1 °C IEC 61724-1 air temperature specification Poster

Radiation Shield Journal Articles

   Inferring Random Component Distributions from Environmental Measurements for Quality Assurance



 FAQs
For FAQs Click Here



Radiation Shield Software & Datalogger Programs
Specification Sheets Icon
Sample Datalogger Programs

Programs are in .CR1X format and can be downloaded for use with Campbell Scientific dataloggers. Right click and select "Save target as..." or an equivalent command in your browser. They can also be viewed using Wordpad or other text viewers.

Note: In 2020 the CR1000 Campbell Scientific datalogger was discontinued. Click here to access the discontinued .CR1 format sample datalogger programs >

Aspirated Radiation Shield >
